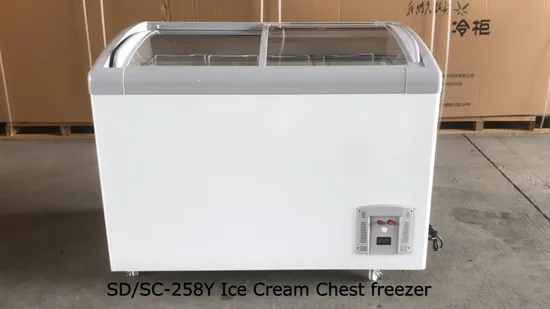

SD/Sc-258y Commercial Glass Door Display Showcase Chest Freezer

Basic Info

Model NO.	SD/SC-258Y
After-sales Service	Online Service
Warranty	1 Year
Capacity	258L
Door Number	Double Doors
Type	Chest/Deep Freezer
Door Type	Sliding Door
Power Source	Electricity
Temperature Control	Mechanical Thermostat
Temperature Type	Single-temperature
Defrost Type	Manual Defrost
Function	Freezing
Certification	CE, CCC, CB, ETL
Climate Class	N/St
Temperature Range	-18 to -24 Degrees
Inside Bottom Type	Step Bottom
Basket	4
Sticker/LED Lamp/Light Canopy	Optional
Frame Color	Gery/Red/Blue
Rated Input Power	220W
Refrigerant	R134A/R290
N.W./G.W.	56/62kgs
Inner Dimension	930*510*700mm
Packing Dimension	1155*730*890mm
Loading Quantity	95 PCS/40′hq
Transport Package	Standard Export Carton
Specification	1075*655*820mm
Trademark	Jiesheng or Customers
Origin	Zhejiang, China
HS Code	8418500000
Production Capacity	2000pieces/Month

Packaging & Delivery

Package size per unit product 115.50cm * 73.00cm * 89.00cm Gross weight per unit product 62.000kg

Product Description

SD/SC-258Y Commercial Glass Door Display Showcase Chest Freezer1. White Powder coated flat aluminum sheet liner is beautiful, durable and is easy to clean.2. R290 compressor is optional, providing enough cooling power;.3. Tempered toughened glass door, door with lock & key;4. Full food metal baskets Inside;5. Galvanized steel bottom;6. Regular is with mechanical temperature controller, electronic controller is optional;7. Powerful castors on the bottom, front with brake;8. Customized side logo stickers, top light canopy and inside LED strip are all optional;9. The frame and plastic color can be Blue, Red and Grey;

Model		SD/SC-218Y		SD/SC-258Y		SD/SC-308Y		SD/SC-358Y		SD/SC-418Y
Capacity		218 L		258 L		308 L		358 L		418 L
Climate class		N/T		N/T		N/T		N/T		N/T
Temperature		-18oC to -22oC		-18oC to -22oC		-18oC to -22oC		-18oC to -22oC		-18oC to -22oC
Inside bottom type		Step bottom		Step bottom		Step bottom		Step bottom		Step bottom
Heated frame design to prevent the freezing dew		Yes		Yes		Yes		Yes		Yes
The glass door with lock		Yes		Yes		Yes		Yes		Yes
Basket(pcs)		3		4		5		6		7
Sticker,LED lamp &Light canopy		Optiona		Optiona		Optiona		Optiona		Optiona
Frame and plastic color		Grey, Red or Blue		Grey, Red or Blue		Grey, Red or Blue		Grey, Red or Blue		Grey, Red or Blue
Power supply		220V/50Hz		220V/50Hz		220V/50Hz		220V/50Hz		220V/50Hz
Rated input power		220W		230W		250W		270W		300W
Power consumption		1.90kwh/24h		2.20 kwh/24h		2.80 kwh/24h		3.20 kwh/24h		4.20 kwh/24h
Refrigerant		R134a/R290		R134a/R290		R134a/R290		R134a/R290		R134a/R290
Net weight/Gross weight		48/53 Kg		56/ 62Kg		63/69 Kg		70/76 Kg		76/83 Kg
Inner dimension(mm)		730x510x700		930x510x700		1100x510x700		1260x510x700		1460x510x700
External dimension (mm)		875x655x820		1075×655×820		1245×665×820		1405×655×820		1605×655×820
Packing dimension(mm)		955x730x890		1155x730x890		1325x730x890		1485x730x890		1685x730x890
Loading quantity		108 pcs/40HQ		95 pcs/40HQ		80 pcs/40HQ		71 pcs/40HQ		62 pcs/40HQ
